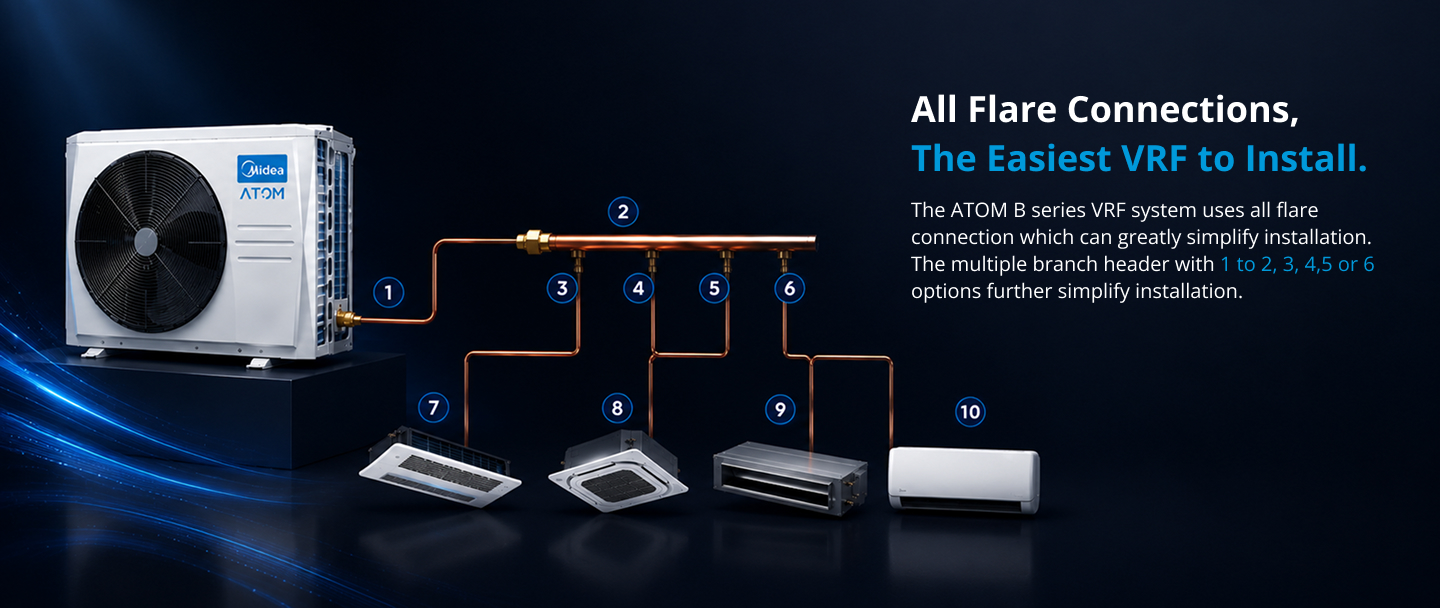

A single outdoor unit supports 1 to 9 indoor units, freeing up considerable space outside. Use your backyard more wisely with much more space available created by less number of outdoor units.
The ATOM B series Mini VRF provides a total piping length possibility of 130m, a maximum height difference between outdoor and indoor units of 30m. The height difference between indoor units can be up to 10m. These generous allowances facilitate an extensive array of system designs.
The ATOM B series system and other VRF system with up to 64 indoor units and 8 systems can be controlled in one centralized control system, it is very convenient for administrators to manage equipment uniformly.
The ATOM series offers capacities from 28kBtu/h to 60kBtu/h, providing flexibility for various applications. Its wide capacity range helps optimize outdoor space by reducing the number of required outdoor units.

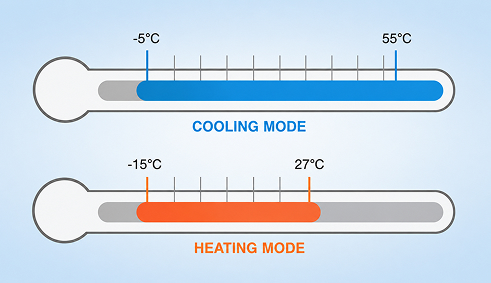

Designed for reliable performance in extreme environments, the VRF system operates efficiently across a wide temperature range from -15°C to 55°C.

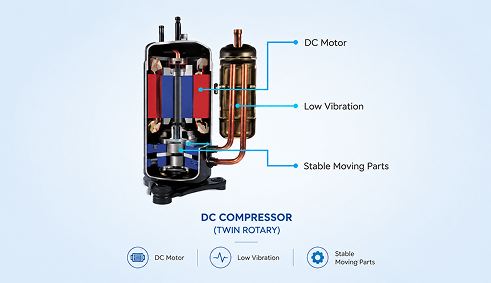

The DC inverter compressor adjusts output based on cooling or heating demand, providing precise temperature control and improved energy efficiency for stable and reliable performance.

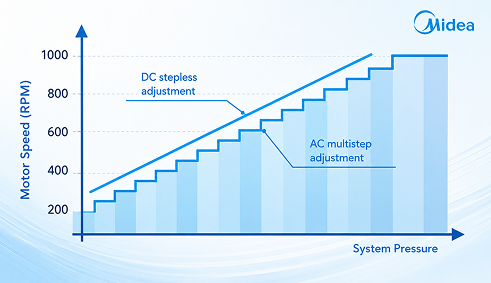

The DC fan motor features stepless speed adjustment for optimized performance, delivering lower power consumption, improved efficiency, and enhanced comfort with reduced operating costs.
